A340E
A340F
A340H
TOYOTA & LEXUS
'84-'02 4-SPEED AUTOMATIC TRANSMISSIONS:
TORQUE CONVERTER
BY RECON
- REPLACES UNITS WITH CODE: 2N, Paint: White dot Green Circle
- INCLUDES 4-YEAR, 100,000 MILE MANUFACTURER'S LIMITED WARRANTY
FITS:
| A340H |
1984 - 1995 |
| A340E |
1986 - 2002 |
| A340F |
1993 - 2002 |
| YEARS | VEHICLE | DRIVE TYPES |
|---|
| 2000 - 2002 |
Toyota Tundra |
RWD, 4WD |
| 1995 - 2002 |
Toyota Tacoma |
RWD, 4WD |
| 1993 - 1998 |
Toyota T100 |
RWD, 4WD |
| 1986 - 1994 |
Toyota Supra |
RWD |
| 1989 - 1995 |
Toyota Pickup |
RWD, 4WD |
| 1990 - 1992 |
Toyota Cressida |
RWD |
| 1984 - 2002 |
Toyota 4Runner |
RWD, 4WD |
| Body Diameter Inches |
11.5 |
| Body Diameter mm |
292.1 |
| Bolt Circle Inches |
9.125 |
| Codes Paint |
2N Paint White dot Green Circle |
| Cooling Shroud |
No |
| Dimple Pitch |
Medium High 630 |
| Hub Internal Bushing |
No |
| Hub Length Inches |
1.75 |
| Hub OD Major Inches |
1.498 |
| Hub Seal Groove |
No |
| Hub Type |
Slotted Flanged |
| Lock-Up Unit |
Yes |
| Mount Threads |
9mm x 125 |
| Mount Type |
Square Pads |
| Number of Mounts |
6 |
| OE End Play |
0.02 |
| OE Height Inches |
4.72 |
| Package UOM |
Each |
| Pilot OD Major Inches |
1.257 |
| Pilot OD Minor Inches |
0.825 |
| Pilot Type |
Top Hat |
| Pump Stall |
Low |
| Quantity Per UOM |
1 |
| Remanufactured |
Yes |
| Stator Codes |
8903 |
| Stator Rotation |
Clockwise |
| Stator Spline Count |
38 |
| Stator Vane Count |
20 |
| Turbine Internal Spline Count |
26 |
- REMANUFACTURED ORIGINAL EQUIPMENT TORQUE CONVERTER
- REPLACES UNITS WITH CODE 2N, PAINT: WHITE DOT WITH GREEN CIRCLE
- BY RECON USA
- INCLUDES 4-YEAR, 100,000 MILE MANUFACTURER'S LIMITED WARRANTY
- $50 REFUNDABLE CORE DEPOSIT ADDED AT CART
- INCLUDES PRE-PAID DOMESTIC UPS LABEL FOR CORE RETURN

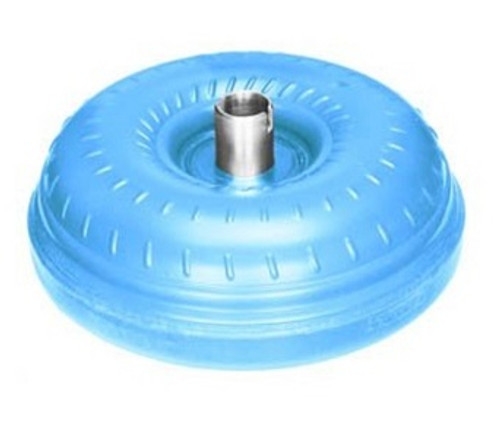

- PHOTO SHOWS ACTUAL TORQUE CONVERTER
- FREE SHIPPING TO ALL 50 U.S. STATES !
- WE SHIP WORLD WIDE
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
